儲槽頂部
粉塵控制設備運用
( State-of-the-art equipment for dust control )
儲槽頂部之運用。
Bunker top mounted filter.
中央集塵之運用。
Central Dust Collector installation.
真空輸送機之運用。
Process Filter.

製程應用原理
( Process-engineering applications )
表面過濾。
Surface filtration.
深層過濾。
Depth filtration.



Antistatic Antistatic

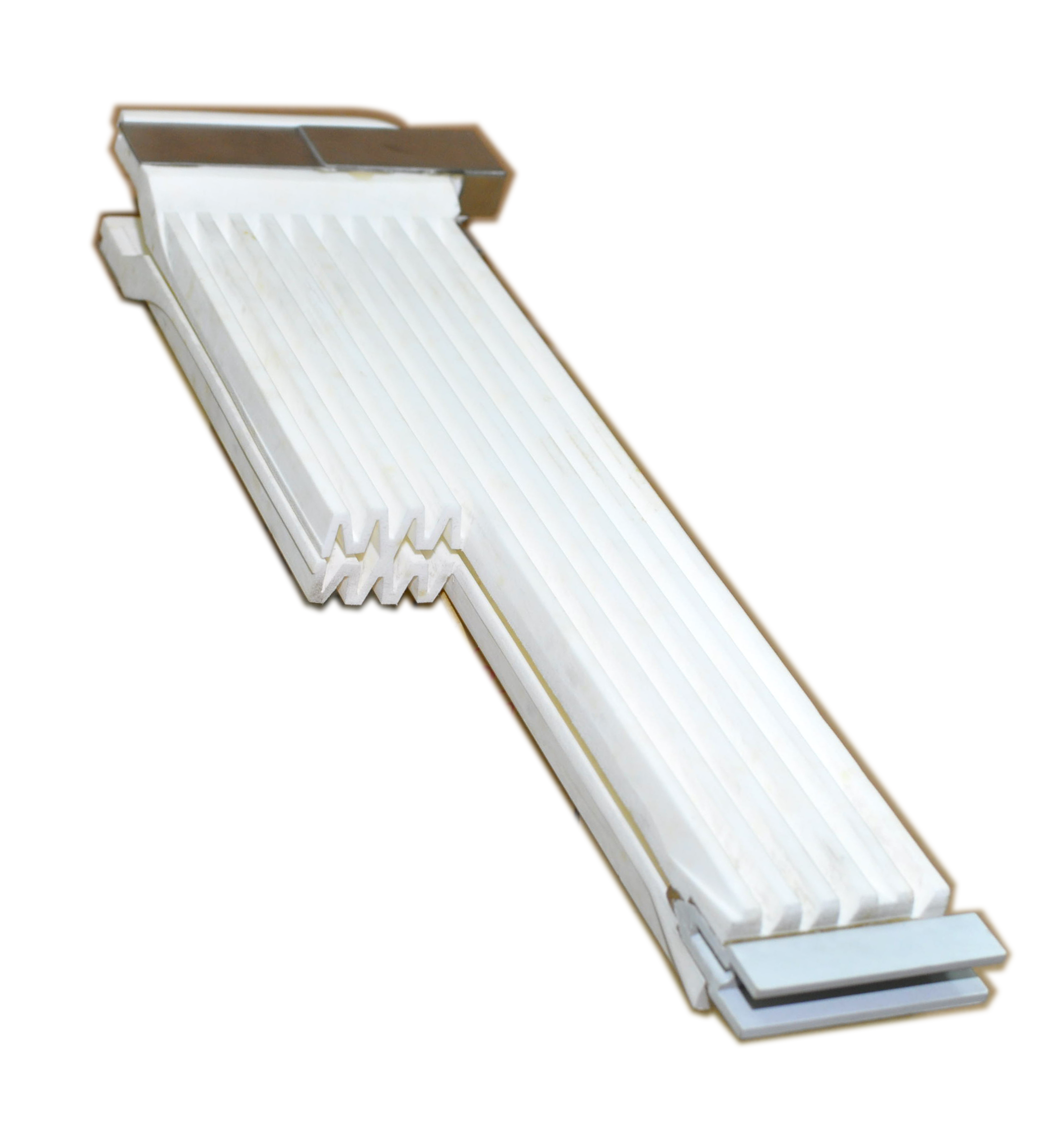

Type C Type C(100 deg. C)
Delta Delta
濾板 Sinter-plate Filters
HSL size
  燒結板式濾材( The sinter-plate filter )
以PE塑材燒結而成的板式濾材,堅固耐磨損。
PE sinter-plate filters features rigid and no abrasion.
斷面結構採蜂巢型設計,過濾面積大而無死角。
Compact construction thanks to extended-surface matrix.
粉塵分離濾效率高,因而出口含塵濃度可達 < 1mg/M³
(依 German TA Air standard)。

High separation efficiency results at low particulate level in cleangas < 1mg/M³ measured to german TA Air standard.
PTFE表面塗裝,孔隙2~3µM,可過濾極微細粉塵,配合氣壓脈衝逆洗,可保持穩定差壓。
Surface filtration with PTFE coating (2~3µM) and the automaticjet-pulseself cleaning of filter elements keep a constant pressure drop and cleangas values.
壽命時間長,因粉塵而異,操作時間約2~5年(已銷售集塵設備,濾材極少更換)。
Long useful life,ab. 2~5 operation years respectively.
以PE燒結濾板製作之集塵機所占面積約為傳統袋式集塵機之40%。
2.5 Times less space required than for conventional bag filter house.
濾材符合食品藥物標準FDA, 21 CFR Ch. I(April 1,2011 edition)。
The filter elements meet the demsnds of the Code of FDA, 21 CFR Ch. I(April 1,2011 edition)
可選用測裝型或頂裝型濾材。
Raw gas mounting or clean gas mounting filter elements can be selected.

  Delta size

F5-800 F5-800
Powder Loade Ex. proof
F5-600 F5-600 Powder Loader Ex. proof
F5-600 F5-600 Powder Loader
F5-400 F5-400
吸料機F5之用途及特性( Features of Powder Loader )
採PE燒結式濾板含PTFE表面塗裝。
Using the PE sinter plat filter elements w/PTFE coating.
適用各種粉體之自動化輸送,及工業用吸塵(如切削焊接所產生之煙霧)。
Automatic conveying of various powder materials.
負壓式鼓風機及微處理自動控制,操作輕便。
Vacuum blower with μ-Processor automatic control for easy operation.
完全密閉式輸送無溢料及污染之問題。
Totally enclosed conveying system which designed for dust-free operation.
獨特設計可調混合比式吸管料。
Unique designed material pick-up tube.
選用氣動料閥設計以利清管順暢。
Optional pneumatic material valve to clean the conveying line.
氣動式真控制閥可搭配原有中央輸送系統。
Pneumatic vacuum valve to connect with existed central conveying system.
可選用防爆機型。
Optional explosion proof model.






運用實績(Application References)
槽頂之運用(Bunker top mounted filter.)
Silo Vent

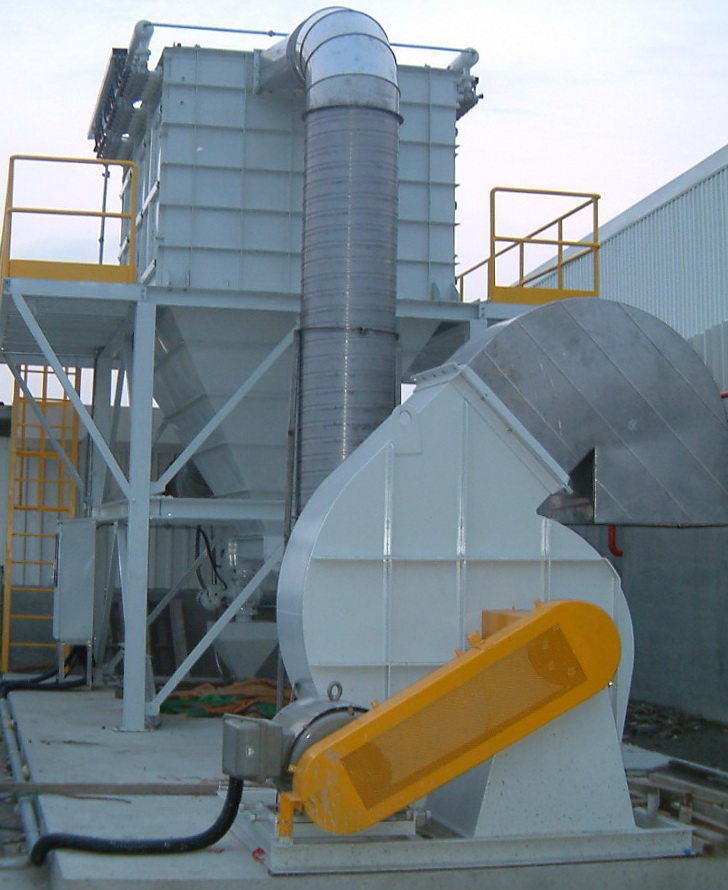

中央集塵之運用(Central Dust Collector installation.)
Dust Collecting System tube
投料集塵(Bag Dumping Station)
Bag Dumping Station
